These instructions are for users with on-premises, standalone, and custom deployments.
Environment variables help connect your application to Splunk Agent Observability. Let’s break down what each variable does and where to find them within the UI.
It’s possible to create an API key by using this API endpoint.

​
Splunk AO API key

You need your Splunk Agent Observability API key to send traces to an Agent Stream from your applications or run experiments in code.
1

Select the user menu

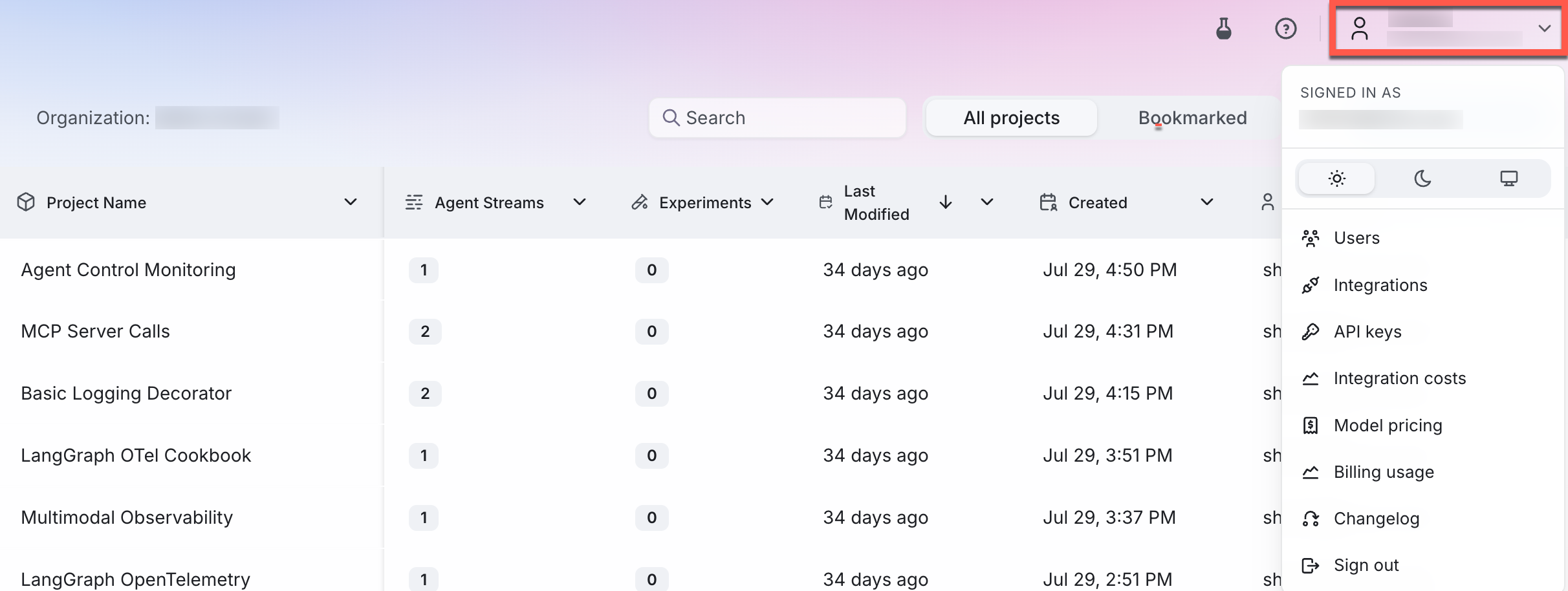

Select your user profile in the upper-right corner.The user menu
2

Open the API keys page

Select API keys from the user menu.
3

Create a new API key

Select the +Create new key button to create a new API key.
4

Name your API key

Give your API key a name and optionally set an expiration date. By default, API keys expire after a year.
5

Copy your API key

Copy your API key and store it somewhere safe. You will not be able to see this key again.

​
Splunk AO Console URL

SPLUNK_AO_CONSOLE_URL is the URL for your on-premises, standalone, or custom deployment. It appears in the browser window when you log into the Splunk Agent Observability homepage. Example SPLUNK_AO_CONSOLE_URL: https://console.subdomain.yourcompany.com

​
Splunk AO API URL

SPLUNK_AO_API_URL is an optional custom API URL for connecting to the Agent Observability REST API. Most users will not need to set up this environment variable, because it will be automatically found from the Console URL:
  • If your Console URL is https://console.subdomain.yourcompany.com, your API URL will automatically be set to https://api.subdomain.yourcompany.com
  • If your Console URL is https://subdomain.yourcompany.com, your API URL will automatically be set to https://api.subdomain.yourcompany.com
If your company has set up a custom API URL, you may wish to verify the URL using these instructions.

​
Splunk Agent Observability Project

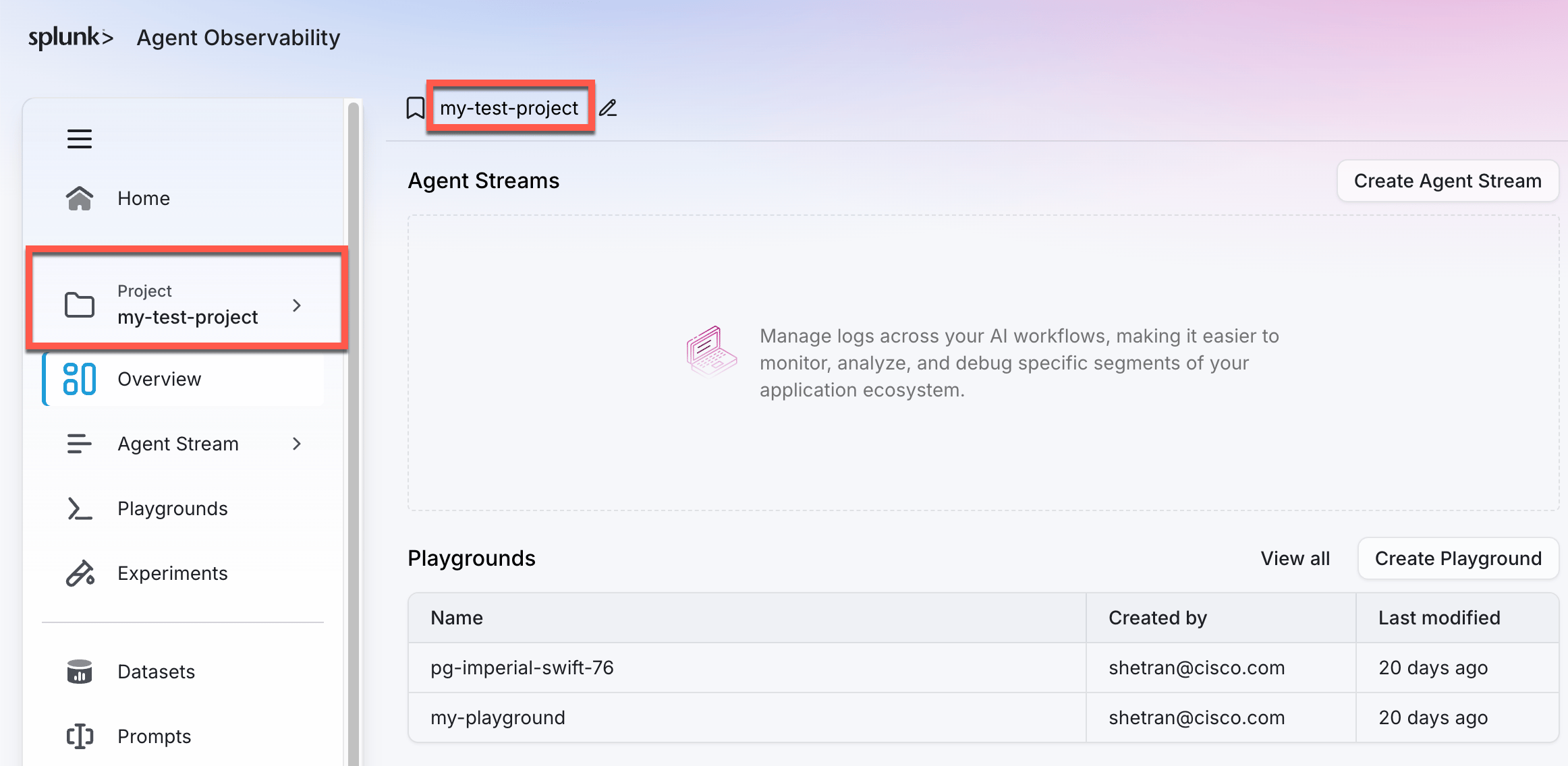

Your Splunk Agent Observability Project is the name of the project you create. Where to find your project ID

​
Splunk Agent Observability Agent Stream

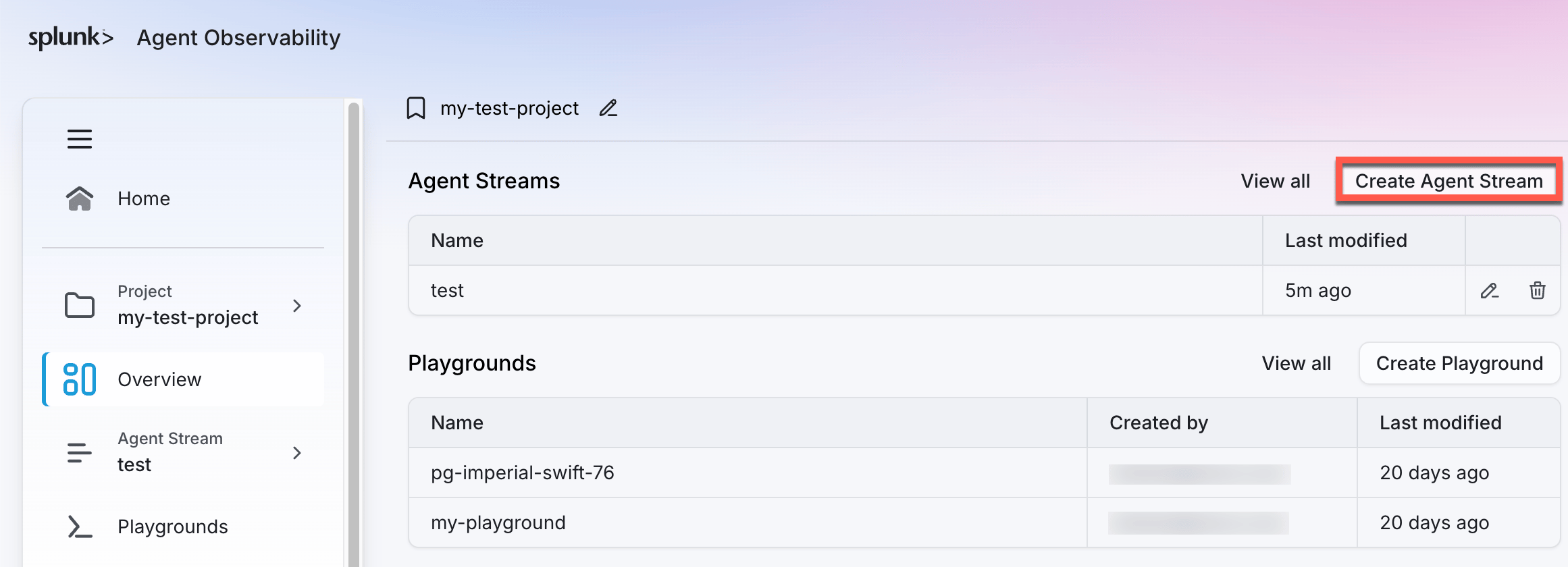

The Splunk Agent Observability Agent Stream is the name of the specific Agent Stream that you want to record your traces into. To find or create an Agent Stream, first select the project you’d want to create an Agent Stream from. On the project home screen, the existing Agent Streams are displayed in a table. Select Create Agent Stream to create a new one. How to create an Agent Stream The Agent Stream name is case-sensitive. If you change the name of the Agent Stream, you will also have to change how it is referenced within your application as well.

​
Best practices and tips

  • Keep your API keys secure and never share them publicly
  • Create separate keys for different applications or environments
  • Set expiration dates for temporary access
  • Regularly rotate keys for enhanced security
  • Use descriptive names to track key usage
