Multimodal Observability

AI applications increasingly process and generate images, audio, and documents. Text-based logs alone no longer capture enough context to debug or evaluate them effectively. A voice agent’s transcription can be perfect while the generated audio sounds robotic. A document extraction can return the right fields but miss a table. An image generation can follow the prompt but produce off-brand visuals. Splunk Agent Observability supports logging multimodal content on trace inputs and outputs, giving teams full visibility into what their models received and produced. With multimodal traces, you can:

Inspect the exact media your model received or generated, not a text summary of it
Evaluate inputs and outputs using multimodal LLM-as-a-judge evaluators
Replay and debug issues that would be invisible in a transcript alone

Choose a logging method

Method	Use when…
SplunkAOLogger — log an external URL	Your content is already hosted externally and accessible via URL
SplunkAOLogger — upload local files	You’re working with files on disk and need to upload them directly
LangChain handler	Your app already uses LangChain — multimodal content converts automatically

Option 1: Log an external URL

Use DataContentBlock with the url field. No encoding required.

Python

from splunk_ao.logger import SplunkAOLogger
from splunk_ao.schema.content_blocks import TextContentBlock, DataContentBlock

logger = SplunkAOLogger()
logger.start_trace(
    input=[
        TextContentBlock(text="Describe this image"),
        DataContentBlock(modality="image", url="https://example.com/photo.png"),
    ],
    project="my-project",
)
logger.add_llm_span(
    input=[{"role": "user", "content": "Describe this image"}],
    output={"role": "assistant", "content": "It's a cat."},
    model="gpt-5",
)
logger.conclude(output="It's a cat.")
logger.flush()

Option 2: Upload local files

Encode local files as base64 and pass them with the base64 and mime_type fields. This works for images, audio, and documents in a single trace. The example below assumes photo.png, recording.wav, and report.pdf are in the same directory as your script:

Python

import base64
from pathlib import Path
from splunk_ao.logger import SplunkAOLogger
from splunk_ao.schema.content_blocks import TextContentBlock, DataContentBlock

image_b64_data = base64.b64encode(Path("photo.png").read_bytes()).decode()
audio_b64_data = base64.b64encode(Path("recording.wav").read_bytes()).decode()
pdf_b64_data   = base64.b64encode(Path("report.pdf").read_bytes()).decode()

logger = SplunkAOLogger()
logger.start_trace(
    input=[
        TextContentBlock(text="Analyze all of these files"),
        DataContentBlock(modality="image",    base64=image_b64_data, mime_type="image/png"),
        DataContentBlock(modality="audio",    base64=audio_b64_data, mime_type="audio/wav"),
        DataContentBlock(modality="document", base64=pdf_b64_data,   mime_type="application/pdf"),
    ],
    project="my-project",
)
logger.add_llm_span(
    input=[{"role": "user", "content": "Analyze all of these files"}],
    output={
        "role": "assistant",
        "content": "The image shows a cat, audio is clear, PDF is a report.",
    },
    model="gpt-5",
)
logger.conclude(
    output="The image shows a cat, audio is clear, PDF is a report."
)
logger.flush()

DataContentBlock supports three modalities: image, audio, and document.

Option 3: Log with the LangChain handler

The LangChain handler converts multimodal message content to structured content blocks automatically. Pass multimodal messages the same way you normally would with LangChain — no extra setup:

Python

from langchain_openai import ChatOpenAI
from langchain_core.messages import HumanMessage
from splunk_ao.handlers.langchain import SplunkAOCallback

callback = SplunkAOCallback()
llm = ChatOpenAI(model="gpt-5", callbacks=[callback])

response = llm.invoke([
    HumanMessage(content=[
        {"type": "text",      "text": "What's in this image?"},
        {"type": "image_url", "image_url": {"url": "https://example.com/photo.png"}},
    ])
])

Supported content types: text, image_url, audio_url, document_url, input_image, and input_audio. Base64 data URIs are also supported — the handler extracts the payload and MIME type automatically.

View multimodal content in your traces

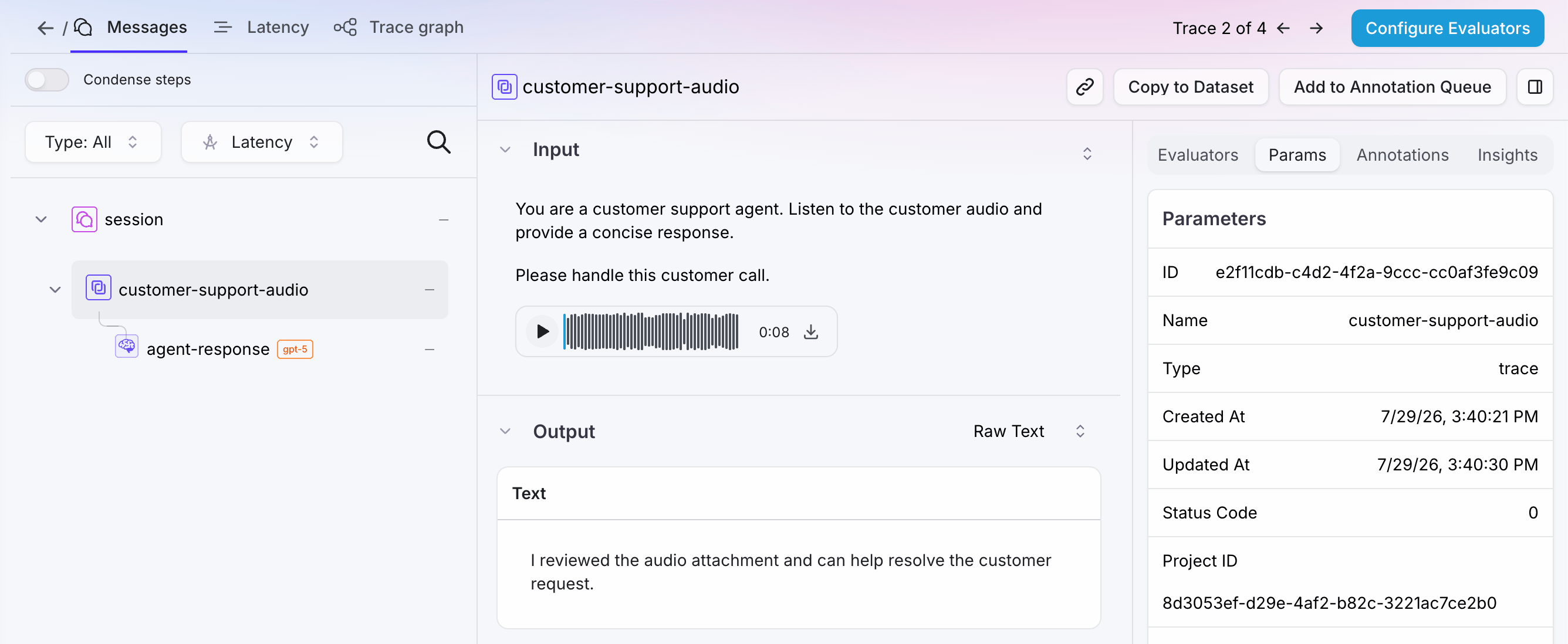

An audio trace in the Splunk Agent Observability Agent Stream showing an inline waveform player in the user input, a text output from the assistant, and audio quality evaluators in the side panel

Multimodal content renders inline in the Agent Stream alongside span inputs and outputs:

Audio renders as an inline waveform player you can play back directly, with download support
Images display inline and can be downloaded
PDFs appear as inline previews and can be downloaded

Evaluate multimodal traces

Splunk Agent Observability provides out-of-the-box LLM-as-a-judge evaluators for multimodal content. You can also configure custom LLM-as-a-judge evaluators on any span, trace, or session that contains multimodal content.

Out-of-the-box evaluators

Evaluator	Modality	What it evaluates
Visual Quality	Image / PDF	Whether input quality is sufficient for the task to be reliably performed
Visual Fidelity	Image / PDF	Whether a generated image complies with brand rules, based on visible evidence
Interruption Detection	Audio	Turn-taking violations — agent overlap, premature barge-in, and user barge-in

Custom LLM-as-a-judge evaluators

Go to Evaluators and create a new custom LLM evaluator.
Configure a model integration. See suggested models below.
Under capabilities, select Image/PDF or Audio.
Enable the evaluator on your Agent Stream before logging content.

Evaluators compute only when the trace contains at least one attachment matching the enabled capability. An evaluator with Image/PDF enabled returns N/A if the trace contains only audio, or no attachments at all. Similarly, an evaluator with Audio enabled returns N/A on image-only traces.

Supported formats and models

Supported formats

Modality	Formats
Image	`png`, `jpeg`
Audio	`mp3`, `wav`
Document	`pdf`

Suggested models

For best results, use GPT-5 or later (OpenAI) for image and PDF evaluation, and Gemini 3+ via Gemini Enterprise for audio. If using Gemini Enterprise, you will also need to configure a separate GCP bucket and credentials for file uploads. See how to set up Gemini Enterprise credentials.

Known limitations

LangChain handler stores the full message list. The trace’s input and output fields contain the full serialized message structure (e.g., [{"content": [...blocks...], "role": "user"}]), not bare content blocks.
Multimodal attachments are not supported via OpenTelemetry or native callbacks (e.g., Google ADK, CrewAI). Use SplunkAOLogger or the LangChain/LangGraph callback instead.
Multimodal evaluators are not supported in playground or prompt experiments.
