Custom Code-Based Evaluators

Custom evaluators allow you to define specific evaluation criteria for your LLM applications. Splunk Agent Observability supports two types of custom evaluators:

Registered custom evaluators: Evaluators that can be shared across your organization
Local evaluators: Evaluators that run in your local notebook environment

Registered custom evaluators

Registered custom evaluators are stored and run in Splunk Agent Observability’s environment and can be used across your organization.

Create a registered custom evaluator

You can create a registered custom evaluator either through the Python SDK or directly in the Splunk Agent Observability UI. Let’s walk through the UI approach:

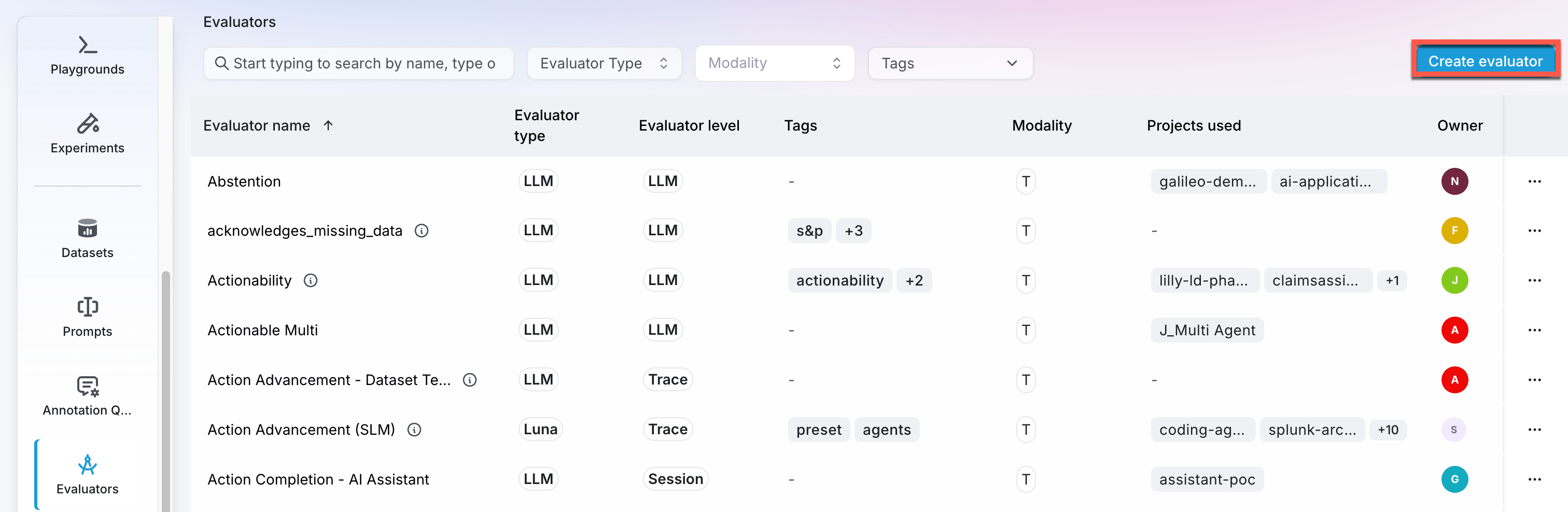

Navigate to the Evaluators section

Use the Splunk Agent Observability main menu to select Evaluators. Select the Create evaluator button.

Select the Code evaluator type

From the dialog that appears, choose the Code-powered evaluator type. This option allows you to write custom Python code to evaluate your LLM outputs.

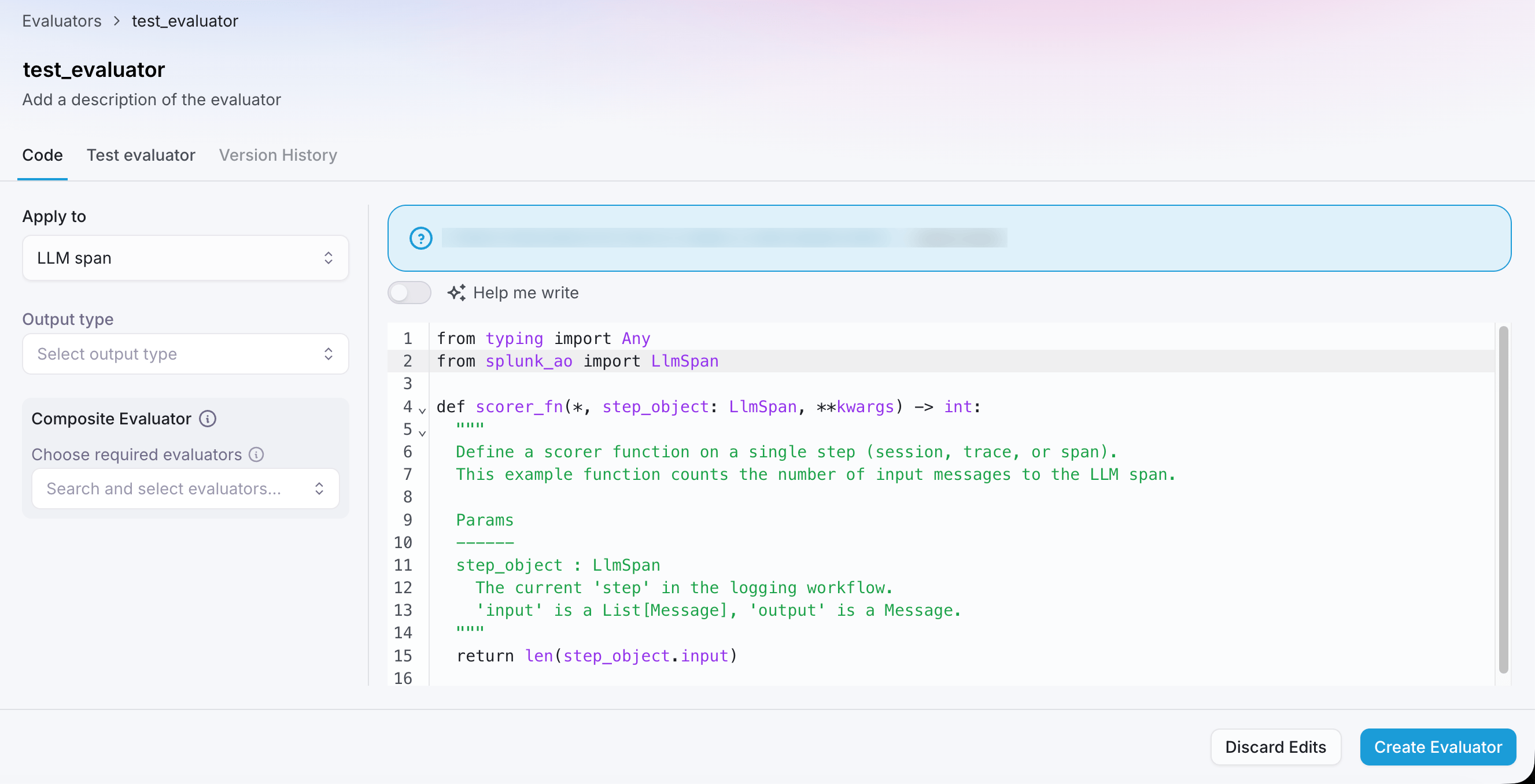

Write your custom evaluator

Select the step level you’d like to apply this evaluator to (ie: Sessions, Traces, LlmSpan, etc…). Then, use the code editor to write your custom evaluator. The editor provides a template with the required functions and helpful comments to guide you.

The code editor allows you to write and test your evaluator directly in the browser. You’ll need to define the scorer_fn function as described below.You can optionally enable the Help me write toggle to use AI-assisted code generation. See AI-assisted code generation for a full walkthrough of this feature.

Test your evaluator

Before saving, test the evaluator against real inputs and iterate on the code. From the Test Evaluator tab you can test three ways: with manual input, against your current logs, or against a labeled dataset to measure how closely it matches your ground truth with a macro F1 score or RMSE.

See Test your evaluators for the full walkthrough of each method and how the scores are calculated.

Save your evaluator

After writing your custom evaluator code, select the Save button in the bottom right corner of the code editor. Your evaluator will be validated. If there are no errors, the evaluator will be saved and become available for use across your organization.You can now select this evaluator when running evaluations.

AI-assisted code generation

Writing a scorer from scratch can be tricky, especially when you’re just getting started or when you’re migrating from another evaluation framework. The Help me write feature generates a working scorer function from a plain-English description — so you can go from idea to runnable evaluator in seconds.

How to use it

Create a custom code-based evaluator

Follow steps 1-3 of Create a registered custom evaluator to start creating a custom code-based evaluator.

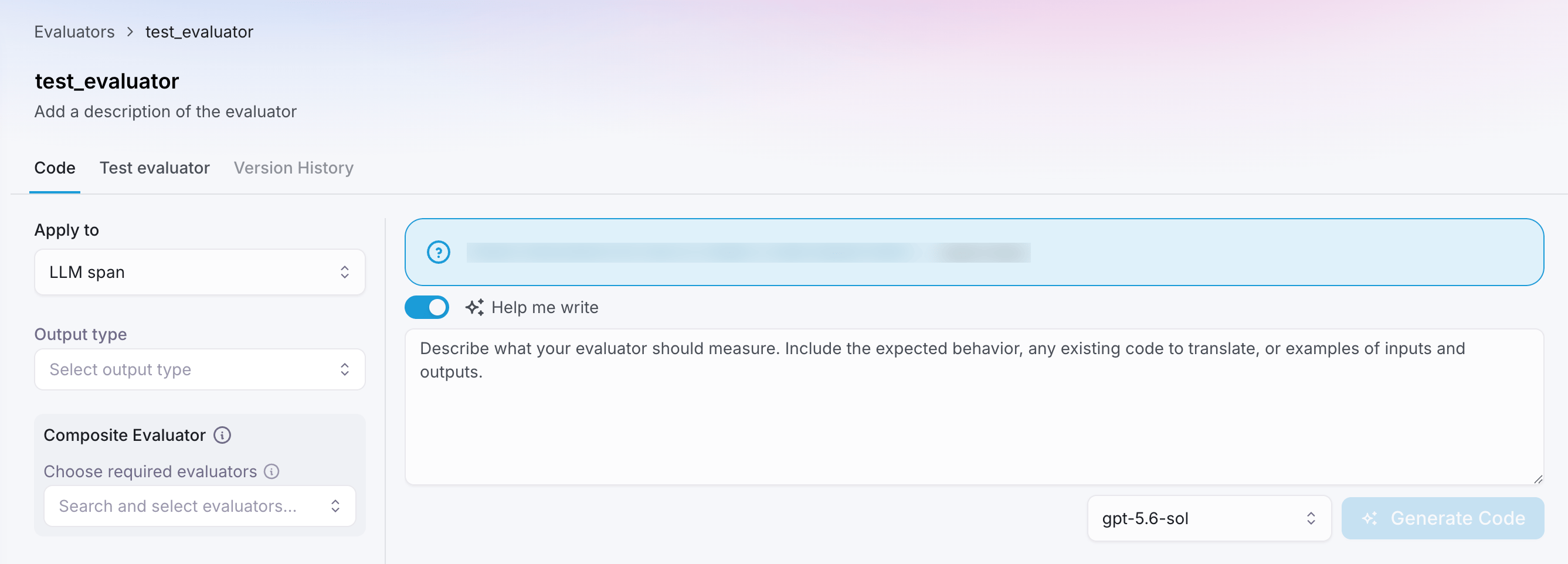

Enable Help me write

In the code editor, toggle on Help me write above the editor panel.

Describe your evaluator

In the prompt field, describe what you want the evaluator to do in natural language. Be as specific as you like — the more detail you provide, the better the generated code will match your intent. Optionally include examples of expected inputs and outputs for edge-case guidance.You can also paste in code from another evaluation framework (LangSmith, RAGAS, etc.) and the generator will convert it to a Splunk Agent Observability scorer automatically.

Choose a model

Select the model you want to use for code generation from the dropdown menu. Models recommended for code generation are highlighted.

Click Generate Code

Click Generate Code. The scorer function is written directly into the editor. Review it, adjust if needed, and proceed to test and save as normal.

Next, you can test and save your code-based evaluator.

AI-assisted generation is a one-shot tool — it creates a starting point rather than engaging in an iterative conversation. After generating, you can edit the code freely in the editor before saving.

Example prompts

Simple boolean check on an LLM span:

Evaluate if the LLM's output contains any email addresses.

Integer count on sessions:

Count the number of LLM calls made in a session.

Migrating from another framework:

The evaluator should calculate the edit distance between
the ground truth and the generated output.

Use this LangSmith code as a reference:

from langsmith.evaluation import evaluate
import rapidfuzz

def custom_edit_distance(run, example):
    prediction = run.outputs.get("output", "")
    reference = example.outputs.get("reference_output", "")
    distance = rapidfuzz.distance.DamerauLevenshtein.distance(prediction, reference)
    return {"key": "custom_damerau_levenshtein", "score": distance}

The scorer function

This function evaluates individual responses and returns a score:

def scorer_fn(
    *,
    step_object: (
        Session | Trace | WorkflowSpan | AgentSpan |
        LlmSpan | RetrieverSpan | ToolSpan
    ),
    **kwargs: Any
) -> float | int | bool | str:
    # Your scoring logic here
    return score

The function must accept **kwargs to ensure forward/backward compatibility. Here’s a complete example that measures the difference in length between the output and ground truth:

def scorer_fn(*,
              step_object: LlmSpan,
              **kwargs: Any) -> Union[float, int, bool, str, None]:
    step_output = step_object.output.content
    reference_output = step_object.dataset_output
    return abs(len(step_output) - len(reference_output))

Parameter details:

step_object: The step object represents the unit of your LLM application being evaluated. It can be one of several types from the splunk-ao library:
- Session - A complete user session containing multiple traces
- Trace - A single execution trace containing multiple spans
- WorkflowSpan - A workflow-level span containing child spans
- AgentSpan - An agent execution span
- LlmSpan - A single LLM call span
- RetrieverSpan - A retriever/search operation span
- ToolSpan - A tool execution span

All step objects provide access to key attributes for evaluation:

Input/Output data: Access the input prompt and generated output (e.g., step_object.output.content for LLM responses)
Metadata: Additional context like timestamps, model information, and custom metadata
Dataset references: Ground truth or reference data when available (e.g., step_object.dataset_output)
Hierarchical data: For Session/Trace/Workflow objects, access child spans and nested execution data

For detailed documentation on each step object type and their specific attributes, refer to the Splunk Agent Observability Python SDK documentation. Each type has unique properties tailored to its execution context—for example, LlmSpan includes model parameters and token counts, while RetrieverSpan includes retrieved documents and search queries.

Complete example: trace counter

Let’s create a custom evaluator that counts the number of traces in a Session:

from splunk_ao import Session

def scorer_fn(*, step_object: Session, **kwargs) -> int:
    num_traces = len(step_object.traces)
    return num_traces

Creating composite evaluators

Composite evaluators are advanced custom evaluators that can access and leverage the results of other evaluators to perform sophisticated evaluations. This allows you to create conditional logic, aggregate multiple evaluators, or build hierarchical evaluations. To create a composite evaluator in the UI:

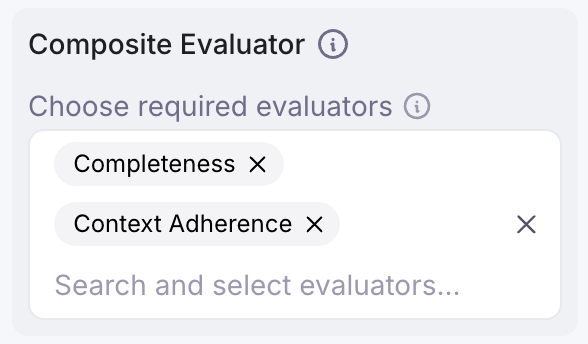

When creating a code-based custom evaluator, use the Composite Evaluators section to select which evaluators must be computed before your composite evaluator runs
Access the required evaluator values in your scorer function via step_object.metrics

Example: Conditional evaluation based on other evaluators

from statistics import mean
from splunk_ao import SplunkAOEvaluators, LlmSpan

def scorer_fn(*, step_object: LlmSpan, **kwargs) -> float:
    # Access required evaluators via step_object.metrics
    # These evaluators were selected in the "Required Evaluators" dropdown

    # Multi-judge evaluators (e.g. correctness, context_adherence) return
    # a list of 0/1 values, one per judge. Use mean() to get the score.
    correctness_score = mean(
        step_object.metrics[SplunkAOEvaluators.correctness] or [0]
    )

    if correctness_score < 0.7:
        return 0.0

    return mean(
        step_object.metrics[SplunkAOEvaluators.context_adherence] or [0]
    )

Referencing evaluators

Splunk Agent Observability preset evaluators: Use the SplunkAOEvaluators enum (e.g., SplunkAOEvaluators.context_adherence)
Custom evaluators: Use the evaluator name as a string (e.g., step_object.metrics["My Custom Evaluator"])

Composite evaluators are only supported for code-based custom evaluators. For a comprehensive guide including use cases and best practices, see the Composite Evaluators documentation.

Execution environment

Registered custom evaluators run in a sandbox Python 3.10 environment with only the Python standard library and the Splunk Agent Observability SDK installed. To install your own PyPI package, you can define dependencies at the top of the file using the script dependency format from uv:

# /// script
# dependencies = [
#   "requests<3",
#   "rich",
# ]
# ///

For full documentation on defining dependencies, check out the ‘uv’ script dependency docs.

Local evaluators

A Local evaluator (or Local scorer) is a custom evaluator that you can attach to an experiment — just like a Splunk Agent Observability preset evaluator. The key difference is that a Local Evaluator lives in code on your machine, so you share it by sharing your code. Local Evaluators are ideal for running isolated tests and refining outcomes when you need more control than built-in evaluators offer. You can also use any library or custom Python code with your local evaluators, including calling out to LLMs or other APIs.

Splunk Agent Observability currently only supports Local scorers in Python

Local scorer components

A Local scorer consists of three main parts:

Scorer Function Receives a single Span or Trace containing the LLM input and output, and computes a score. The exact measurement is up to you — for example, you might measure the length of the output or rate it based on the presence/absence of specific words.
LocalMetricConfig[type] A typed callable provided by Splunk Agent Observability’s Python SDK that combines your Scorer into a custom evaluator.
- Example: If your Scorer returns bool values, you would use LocalMetricConfig[bool](…).

Scorer function can be a simple lambda when your logic is straightforward. Local evaluators let you tailor evaluation to your exact needs by defining custom scoring logic in code. Whether you want to measure response brevity, detect specific keywords, or implement a complex scoring algorithm, Local Evaluators integrate seamlessly with Splunk Agent Observability’s experimentation framework. Once you’ve defined your Scorer function and wrapped it in a LocalMetricConfig, running the experiment is as simple as calling run_experiment. The results appear alongside Splunk Agent Observability’s built-in evaluators, so you can compare, visualize, and analyze everything in one place. With local evaluators, you have full control over how you measure LLM behavior—unlocking deeper insights and more targeted evaluations for your AI applications.

Create a local evaluator

Learn how to create a local evaluator in Python to use in your experiments

Comparison: registered custom evaluators vs. local evaluators

Feature	Registered Custom Evaluators	Local Evaluators
Creation	Python client, activated via UI	Python client only
Sharing	Organization-wide	Current project only
Environment	Server-side	Local Python environment
Libraries	Any available library.	Any available library
Resources	Restricted by Splunk Agent Observability	Local resources

Common use cases

Custom evaluators are ideal for:

Heuristic evaluation: Checking for specific patterns, keywords, or structural elements
Model-guided evaluation: Using pre-trained models to detect entities or LLMs to grade outputs
Business-specific evaluators: Measuring domain-specific quality indicators
Comparative analysis: Comparing outputs against ground truth or reference data

Simple example: sentiment scorer

Here’s a simple custom evaluator that measures the sentiment of responses:

from splunk_ao import Span, Trace

def scorer_fn(step: Span | Trace) -> float:
    """
    A simple sentiment scorer that counts positive and negative words.
    Returns a score between -1 (negative) and 1 (positive).
    """
    positive_words = [
        "good", "great", "excellent",
        "positive", "happy", "best", "wonderful"
    ]
    negative_words = [
        "bad", "poor", "negative", "terrible",
        "worst", "awful", "horrible"
    ]

    step_output = step.output.content

    # Convert to lowercase for case-insensitive matching
    text = step_output.lower()

    # Count occurrences
    positive_count = sum(text.count(word) for word in positive_words)
    negative_count = sum(text.count(word) for word in negative_words)

    total_count = positive_count + negative_count

    # Calculate sentiment score
    if total_count == 0:
        return 0.0  # Neutral

    return (positive_count - negative_count) / total_count

This simple sentiment scorer:

Counts positive and negative words in responses
Calculates a sentiment score between -1 (negative) and 1 (positive)
Aggregates results to show the distribution of positive, neutral, and negative responses

You can easily extend this with more sophisticated sentiment analysis techniques or domain-specific terminology.

Next steps

Create custom LLM-as-a-judge evaluators

Learn how to create custom LLM-as-a-judge evaluators in the Splunk Agent Observability UI or in code.

LLM-as-a-Judge Prompt Engineering Guide

Learn best practices for prompt engineering with custom LLM-as-a-judge evaluators.

Evaluators overview

Explore Splunk Agent Observability’s comprehensive evaluators framework for evaluating and improving AI system performance across multiple dimensions.

Create a local evaluator

Learn how to create a local evaluator in Python to use in your experiments

Run experiments

Learn how to run experiments in Splunk Agent Observability using the Splunk Agent Observability SDKs and custom evaluators.
